| Motherboard |
| X13SEW-TF |
| Processor |
| CPU |
- Single Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
|
| Note |
Supports 85W - 350W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details. |
| System Memory |
| Memory |
- Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
|
| Memory Voltage |
1.1V |
| On-Board Devices |
| SATA |
SATA (6Gbps) ; RAID 0/1 support |
| Chipset |
Intel® C741 |
| Network Connectivity |
2 RJ45 10GbE |
| Input / Output |
| LAN |
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GbE LAN ports (Intel® X550-AT2) |
| USB |
2 USB 2.0 Type-A ports
2 USB 3.2 Gen1 Type-A ports |
| Video |
1 VGA port(Rear) |
| Management |
| Software |
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| Power configurations |
Power-on mode for AC power recovery
ACPI Power Management |
| Security |
| Hardware |
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features |
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown |
| PC Health Monitoring |
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN |
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors |
| Temperature |
Monitoring for CPU and chassis environment
CPU thermal trip support, PEPI |

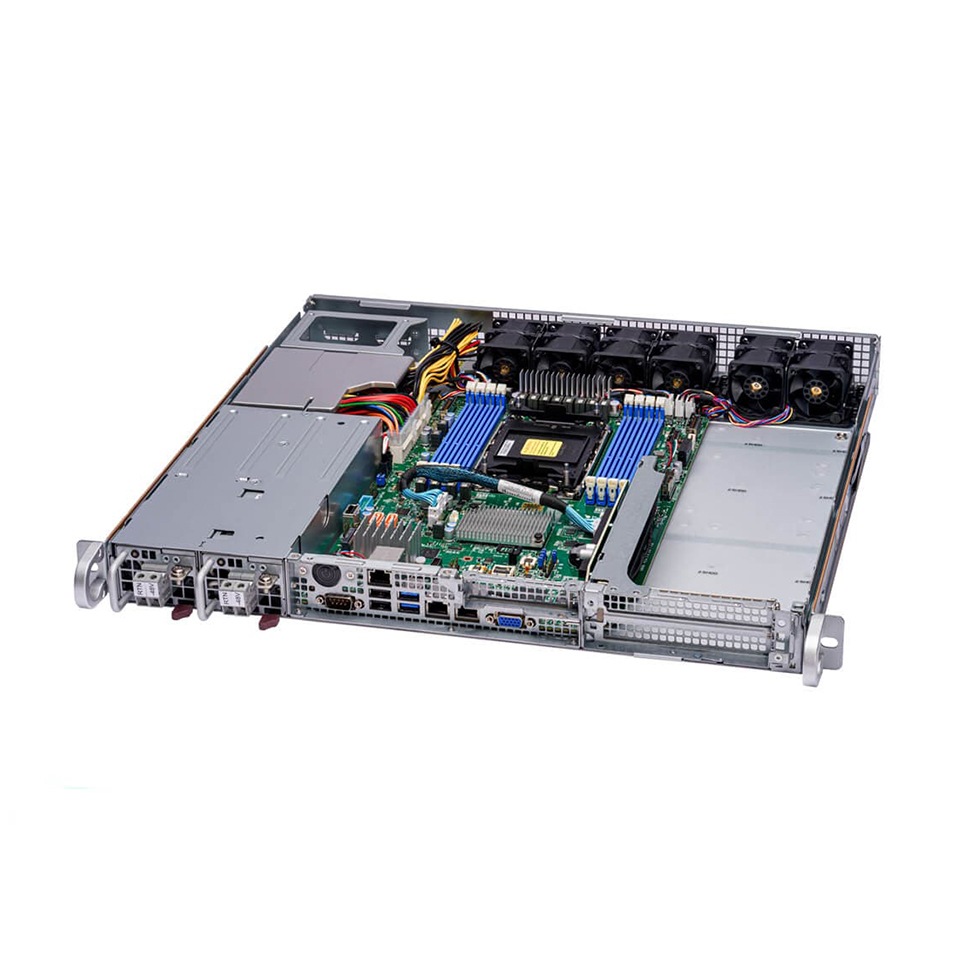

| Chassis |
| Form Factor |
1U Rackmount |
| Model |
CSE-515B-R601W |
| Dimensions and Weight |
| Dimensions |
H1.7" (43 mm) x W17.2" (437 mm) x D16.9" (429 mm) |
| Weight |
Gross Weight: 14.99 lbs (6.8 kg)
Net Weight: 10.01 lbs (4.54 kg) |
| Front Panel |
| LED |
Fan Fail/System Over Heat LED
Power LED |
| Buttons |
Power On/Off button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
Default
1 PCIe 5.0 x16 LP slot
2 PCIe 5.0 x16 FHFL slots |
| Drive Bays / Storage |
| Drive Bays Configuration |
Default: Total 2 bays
2 internal fixed 2.5" SATA drive bays |
| M.2 |
1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110) |
| System Cooling |
| Fans |
6 heavy duty fans with optimal fan speed control |
| Air Shroud |
1 Air Shroud |
| Power Supply |
| 2x 600W Redundant (1 + 1) Typical 90%+ Level (96%) power supplies |
| AC Input |
600W: -44--65Vdc / 50-60Hz |
| +12V |
Max: 50A / Min: 0A
Max: 50A |
| 5V SB |
Max: 3A / Min: 0A |
| Operating Environment |
| Environmental Spec. |
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
