■製品仕様 メーカーリンク
Key Applications
・Intel® QuickAssist Technology
・Networking Application, Firewall, uCPE, Telecom Application
Key Features
・Intel® Xeon® Processor D-2796NT, CPU TDP 120W
・Up to 256GB Registered ECC RDIMM, DDR4-2933MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2933MHz, in 4 DIMM slots
・2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
・4x GbE, 2x 25G SFP28 and 2x 10G Base-T
・1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
・5x 40x56mm Hot-swap Counter-rotation PWM Fans
・Redundant 800 W, 100-240 Vac

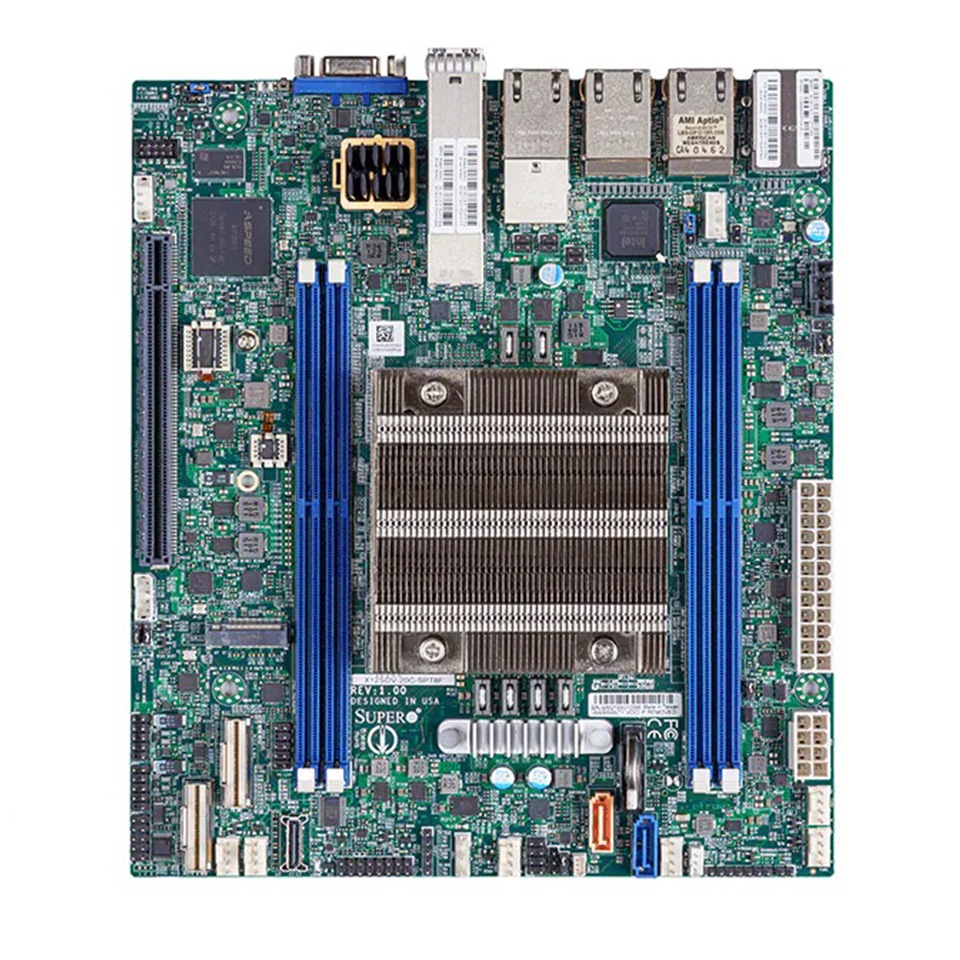

| Motherboard |
| X12SDV-20C-SPT8F |
| Processor |
| CPU |
- Single FCBGA-2579
Intel® Xeon® Processor D-2700 Series
|
| Note |
Supports up to 120W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count |
Up to 1 double-width or 1 single-width GPU |
| Supported GPU |
NVIDIA PCIe: L4 |
| CPU-GPU Interconnect |
PCIe 4.0 x16 CPU-to-GPU Interconnect |
| System Memory |
| Memory |
- Slot Count: 4 DIMM slots
Max Memory (1DPC): Up to 256GB/512GB 2933MT/s ECC DDR4 RDIMM/LRDIMM
|
| Memory Voltage |
1.2V |
| On-Board Devices |
| Chipset |
Intel® SoC |
| Network Connectivity |
4 RJ45 1GBASE-T with Intel® I350
2 SFP28 25GbE with Intel® SoC
2 RJ45 10GBASE-T with Intel® X550 |
| Input / Output |
| LAN |
1 RJ45 1 GbE Dedicated BMC LAN port
4 RJ45 1 GbE LAN ports (Intel® I350)
2 RJ45 10 GbE LAN ports (Intel® X550)
2 SFP28 25 GbE LAN ports (Intel® SOC) |
| USB |
2 ports |
| Video |
1 VGA port(Rear) |
| Management |
| Software |
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) |
| Power configurations |
Power-on mode for AC power recovery
ACPI Power Management |
| Security |
| Hardware |
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features |
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown |
| PC Health Monitoring |
| CPU |
Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN |
Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature |
CPU thermal trip support, PEPI Monitoring for CPU and chassis environment |
| Chassis |
| Form Factor |
1U Rackmount |
| Model |
CSE-515M-R000NP2 |
| Dimensions and Weight |
| Dimensions |

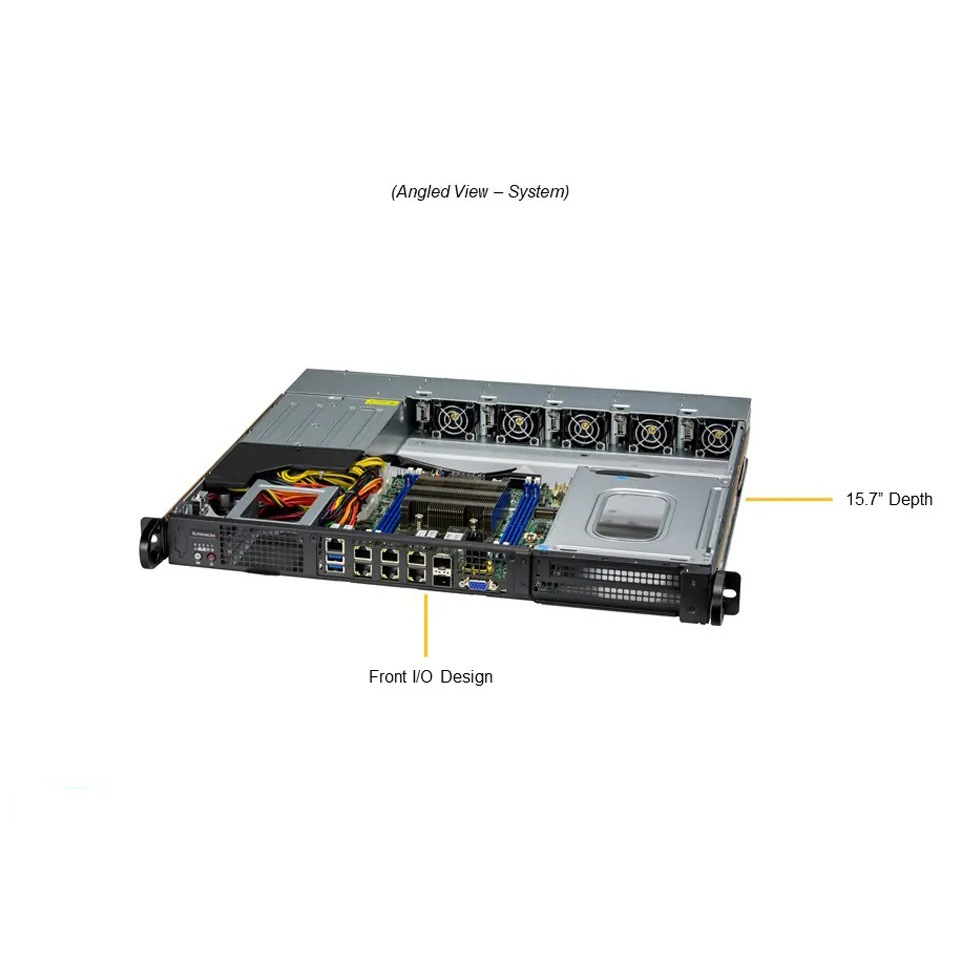

H1.7" (43 mm) x W17.2" (437 mm) x D15.7" (399 mm) |
| Weight |
Gross Weight: 29 lbs (13.15 kg)
Net Weight: 18 lbs (8.16 kg) |
| Front Panel |
| LED |
HDD activity
LAN1 activity
LAN2 activity
Power status
System information |
| Buttons |
Power On/Off
UID button |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
Default
1 PCIe 4.0 x16 FHFL slot |
| Drive Bays / Storage |
| Drive Bays Configuration |
Default: Total 2 bays
2 internal fixed 2.5" SATA drive bays |
| M.2 |
1 M.2 NVMe/SATA slot (M-key 2242/2280) |

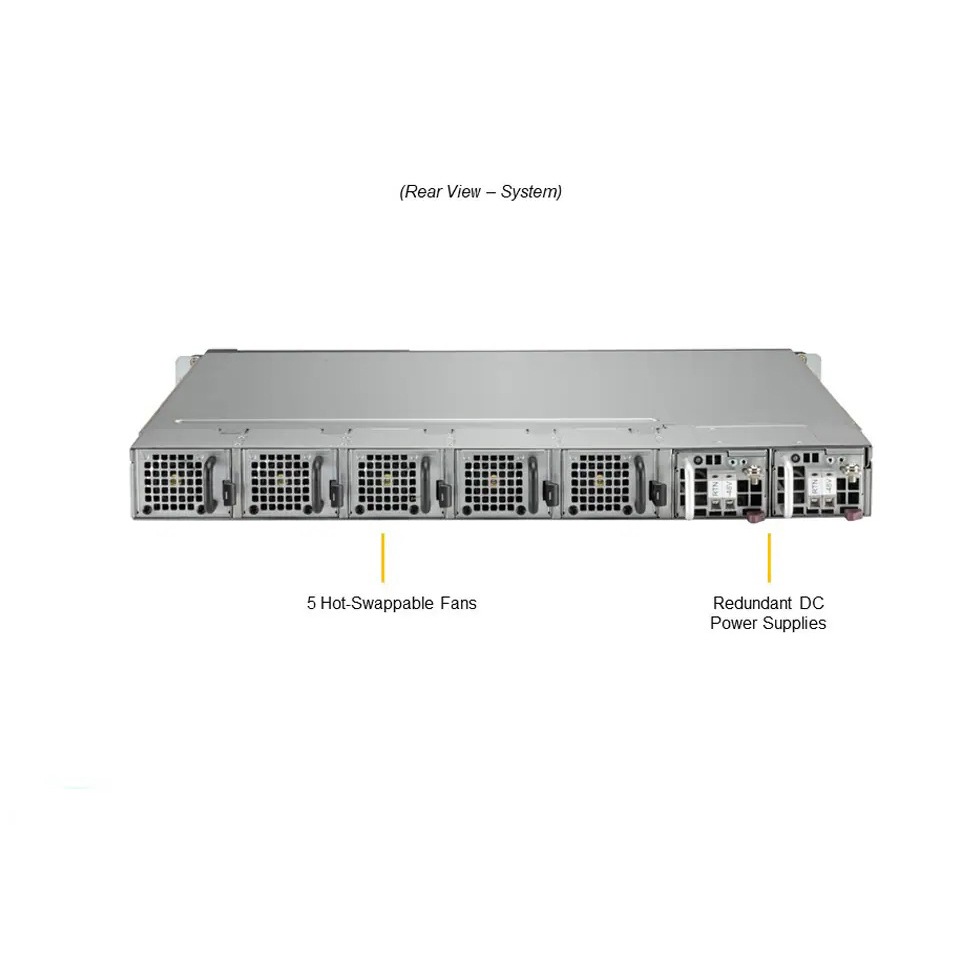

| System Cooling |
| Fans |
5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s) |
| Power Supply |
| 2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies |
| AC Input |
600W: -44--65Vdc |
| +12V |
Max: 50A / Min: 0A
Max: 50A |
| 5V SB |
Max: 3A / Min: 0A |
| Operating Environment |
| Environmental Spec. |
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
この製品はベアボーンキットです。メモリー、HDD・SSD等は付属致しません。
仕様・付属品の詳細は
メーカーページにてご確認ください。
［保証に関して］
保証：1年
3年保証も対応可能ですのでお問合せください。
