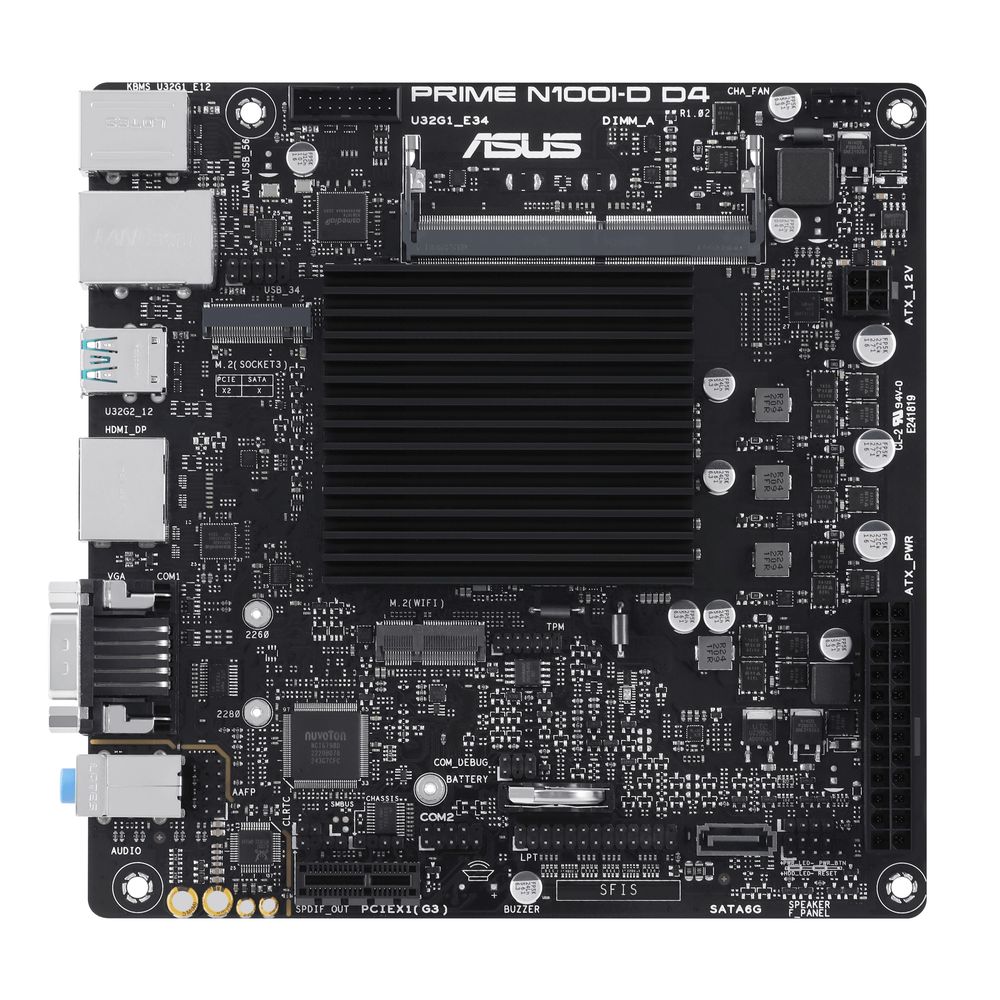

| 製品名 | PRIME N100I-D D4-CSM |
| 規格 | Mini ITX規格: 6.7-inch x 6.7-inch (17cm x 17cm) |
| CPU | - Intel Processor N100
- Intel Turbo Boost Technology 2.0 |
| メモリー | - 1 x SO-DIMM, Max. 16GB DDR4 Non-ECC, Un-buffered Memory - 3200/2933/2800/2666/2400/2133 MHz
※メモリサポートリストはメーカーページをご確認下さい |
| 拡張スロット | - 1 x PCIe 3.0 x1 スロット (PCIE1)
- 1 x M.2 slot (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately. |
| ストレージ | - 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)
- 1 x SATA 6Gb/s port |
| 有線LAN | - 1 x Realtek 1Gb Ethernet |
| オーディオ | - Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB | Rear USB (Total 6 ports) - 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*
- 2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| 背面I/Oポート | - 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
- 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A）
- 1 x DisplayPort
- 1 x VGA port
- 1 x HDMI Port
- 1 x COM port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port |
| 内部コネクタ | Fan and cooling related
- 1 x 4-pin Chassis Fan header
Power related
- 1 x 24-pin Main Power connector
- 1 x 4-pin +12V Power connector
Storage related
- 1 x M.2 slot (Key M)
- 1 x SATA 6Gb/s port
USB
- 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x M.2 slot (Key E)
- 1 x Chassis Intrude header
- 1 x LPT header
- 1 x S/PDIF out header
- 1 x SPI TPM header (14-1pin)
- 1 x Speaker Header
- 1 x System Panel connector |
| 対応OS | Windows 10 64-bit / 11 64-bit |
| 保証 | 1年間
国内正規代理店取扱い品
※オーバークロック行為に伴う故障等は保証対象外となります。ご注意ください。 |
