| Dimensions (WxHxD, mm) |
1U
438 x 43.5 x 815 |
| Motherboard |
MZ93-FS1 |
| CPU |
- AMD EPYC 9004 Series Processors
AMD EPYC 9004 Series Processors with AMD 3D V-Cache Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C
Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.
*cTDP supported up to 400W under limited thermal conditions.
- Please contact technical support for more details.
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
|
| Socket |
2 x LGA 6096
Socket SP5 |
| Chipset |
System on Chip |
| Memory |
- 24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s
|
| LAN |
Rear side:
2 x 1Gb/s LAN ports (1 x Intel I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
Front side:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
- (SATA from CPU_0)
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A |
| Expansion Slots |
PCIe Cable x 2:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards |
| Internal I/O |
1 x TPM header |
| Front I/O |
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED |

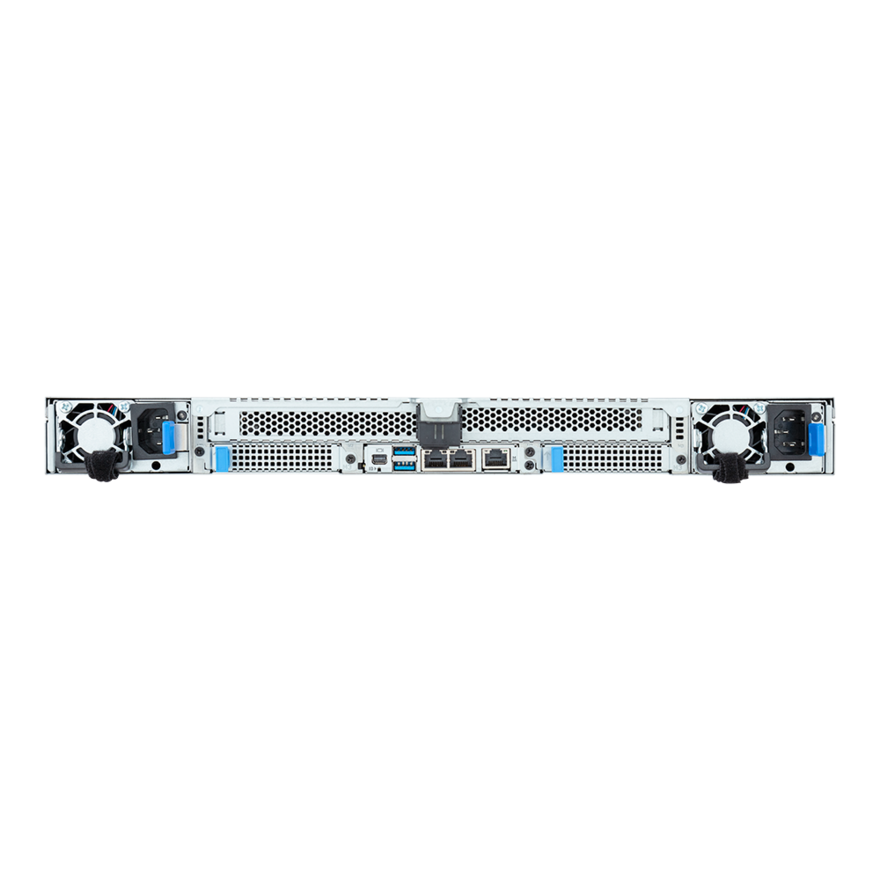

| Rear I/O |
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED |
| Backplane Board |
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| TPM |
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
|
| Power Supply |
Dual 1600W 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A |
| System Management |
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings |
| OS Compatibility |
Please refer to OS compatibility table in support page |
| System Fans |
8 x 40x40x56mm (32,000rpm)
|
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content |
1 x R183-Z94-AAD1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit |
