| Dimensions (WxHxD, mm) |
2U
448 x 87.5 x 800 |
| Motherboard |
MS43-G20 |
| CPU |
- 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Dual processor, TDP up to 225W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
|
| Socket |
2 x LGA 4677
Socket E |
| Chipset |
Intel C741 |
| Memory |
- 24 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup.
- Please refer to the QVL for more information.
|
| LAN |
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
Front side:
4 x 2.5" Gen5 NVMe/SATA/SAS* hot-swappable bays
4 x 2.5" SATA/SAS* hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
*SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards |
| Expansion Slots |
Riser Card CRSG821 x 2:
- 2 x PCIe x16 (Gen5 x16) or 4 x PCIe x16 (Gen5 x8) FHFL slots, from PS7101, for GPUs
Riser Card CRSG822 x 2:
- 2 x PCIe x16 (Gen5 x16) or 4 x PCIe x16 (Gen5 x8) FHFL slots, from PS7101, for GPUs
Riser Card CRSG01F x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative. |
| Internal I/O |
1 x TPM header
1 x VROC connector |
| Front I/O |
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED |
| Rear I/O |
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED |
| Backplane Board |
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s |
| TPM |
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
|
| Power Supply |
Dual 3000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A |
| System Management |
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings |
| OS Compatibility |
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64) |
| System Fans |
8 x 80x80x38mm (18,300rpm)
|
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content |

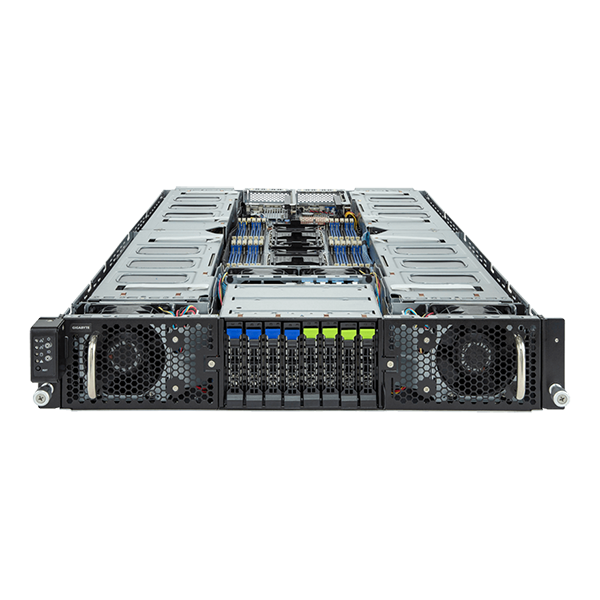

1 x G293-S41-AAP1
2 x CPU heatsinks
4 x GPU power cables (12VHPWR, 250mm)
6 x Carriers
1 x L-shape Rail kit |
