| Dimensions (WxHxD, mm) |
2U
438 x 87.5 x 815 |
| Motherboard |
MS93-FS0 |
| CPU |
- 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
|
| Socket |
2 x LGA 4677
Socket E |
| Chipset |
Intel C741 |
| Memory |
- 32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel Xeon: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup.
- Please refer to the QVL for more information.
|
| LAN |
Rear side:
2 x 1Gb/s LAN ports (1 x Intel I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays, NVMe from CPU_1
20 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Broadcom SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
a) SAS card is required to enable the drives.
b) All devices are connected to SAS expander.
c) Please select enterprise SATA devices for SAS expander system.
SAS
Supported
RAID
Intel SATA RAID 0/1/10/5 |
| Expansion Slots |
Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRS202E:
- 2 x PCIe x16 (Gen5 x8) low-profile slots, from CPU_0
Riser Card CRS202G:
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_0*
*Slot_10 downgraded to Gen4 if using XCC CPU with 4 x UPI.
Riser Card CRS202H:
- 2 x PCIe x16 (Gen5 x16) FHHL slots, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function |
| Internal I/O |
1 x TPM header
1 x VROC connector |
| Front I/O |
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED |
| Rear I/O |
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED |
| Backplane Board |
Speed and bandwidth:
Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s |
| TPM |
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
|
| Power Supply |
1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input:
- 100-127V~/ 13A, 50-60Hz
- 200-220V~/ 10A, 50-60Hz
- 220-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1800W/ 200-220V~
+12.2V/ 148A
+12.2Vsb/ 3A
- Max 2000W/ 220-240V~ or 240Vdc Input
+12.2V/ 164A
+12.2Vsb/ 3A |
| System Management |
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings |
| OS Compatibility |
Please refer to OS compatibility table in support page
Additional certifications:
VMware ESXi 8.0
Windows Server 2022 (x64) |
| System Fans |
4 x 80x80x38mm (18,300rpm)
|
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content |

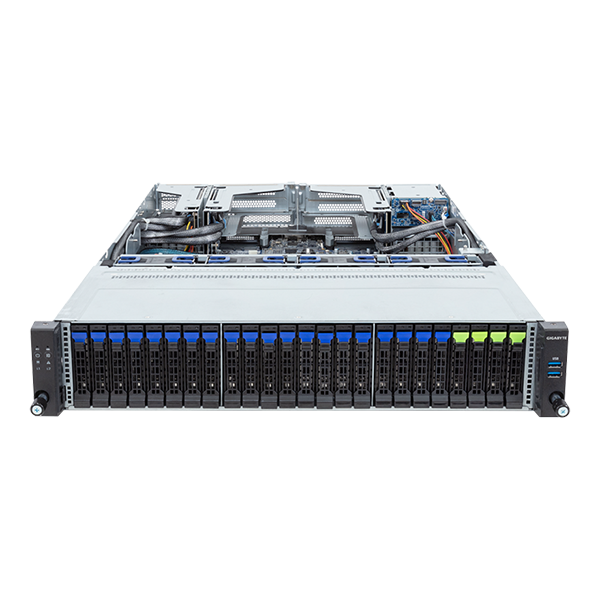

1 x R283-S92-AAJ4
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit |
