| Dimensions (WxHxD, mm) |
1U
438 x 43.5 x 815 |

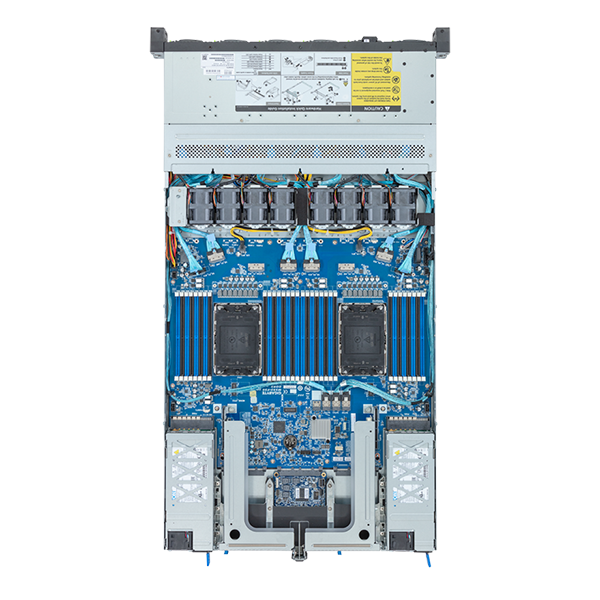

| Motherboard |
MS93-FS0 |
| CPU |
- 5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Dual processor, TDP up to 350W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
|
| Socket |
2 x LGA 4677
Socket E |
| Chipset |
Intel C741 |
| Memory |
- 32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
|
| LAN |
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN |
| Video |
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp |
| Storage |

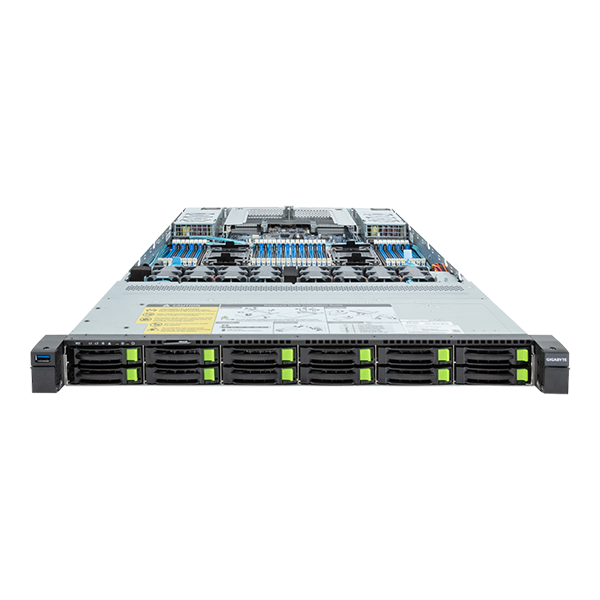

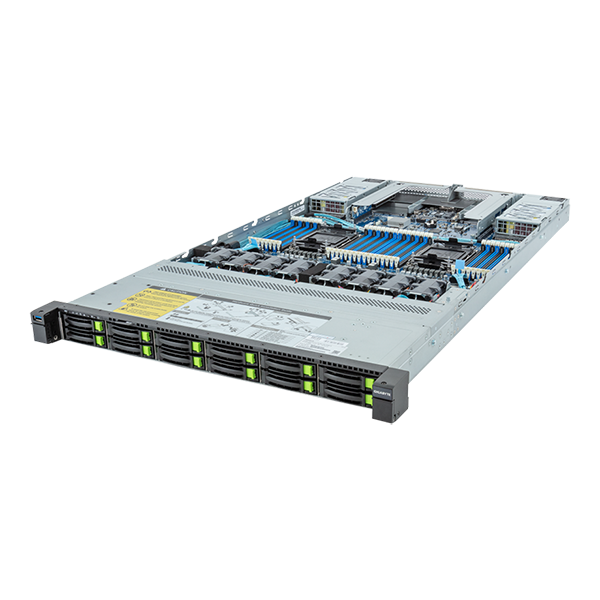

Front side:
12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel SATA RAID 0/1/10/5
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10 |
| Expansion Slots |
Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function |
| Internal I/O |
1 x TPM header
1 x VROC connector |
| Front I/O |
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED |

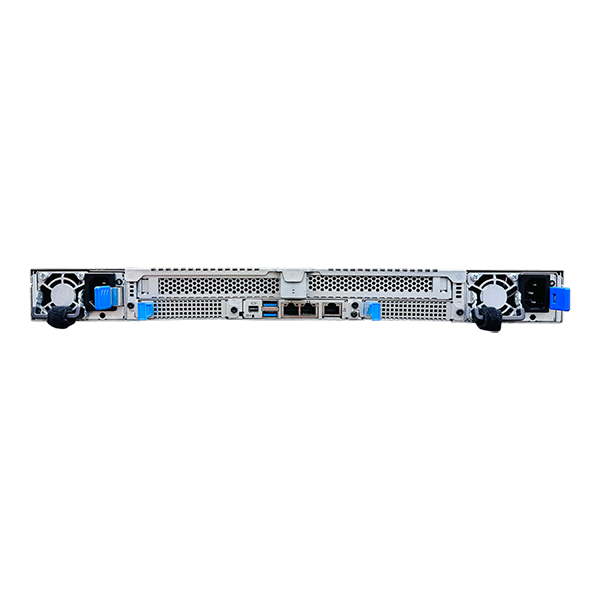

| Rear I/O |
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED |
| Backplane Board |
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
| TPM |
- 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
|
| Power Supply |
Dual 1600W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A |
| System Management |
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings |
| OS Compatibility |
Please refer to OS compatibility table in support page
Additional certifications:
Ubuntu 20.04 LTS (x64)
VMware ESXi 8.0
Windows Server 2022 (x64) |
| System Fans |
8 x 40x40x56mm (32,000rpm)
|
| Operating Properties |
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Content |
1 x R183-S92-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit |
