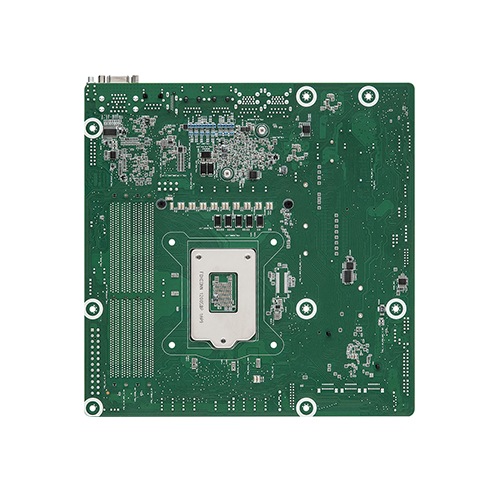

| フォームファクター |
Micro-ATX
|
| サイズ（W×D） |
9.6'' x 9.6'' (244 mm x244 mm)
|
| CPU |
Supports Intel Xeon E-2300 and 10th Gen Intel Pentium Series Processors
|
| ソケット |
Single Socket H5 (LGA1200)
|
| 最大 CPU パワー |
95W
|
| チップセット |
Intel C256
|
| システム メモリ |
4 DIMM slots (2DPC)
DDR4 288-pin ECC/non-ECC UDIMM
|
| DIMM Sizes |
32GB
|
| DIMM Frequency |
3200MT/s*
*Up to DDR4 2666MT/s when installing 10th Gen Intel Pentium Series Processors
|
| PCIe x 16 |
SLOT6: PCIe4.0* x16 [CPU]
*When installing 10th Gen Intel Pentium Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
|
| PCIe x 4 |
SLOT4: PCIe4.0* x4 [CPU]
*When installing 10th Gen Intel Pentium Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function
|
| M.2 |
1 M-key* (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH]
1 M-key (PCIe3.0 x4); support 2280/2260 form factor [PCH]
*SATA0 will be disabled when M2_1 populated with SATA device
|
| SATA コントローラ |
Intel C256 (8 SATA 6Gb/s; RAID 0/1/5/10):
7 SATA 7-pin, 1 SATA DOM or 1 M.2
|
| BMC コントローラ |
ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
|
| IPMI Dedicated GLAN |
1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211E
|
| LAN コントローラ |
Broadcom BCM57416: 2 RJ45 (10GbE)
Intel i210: 2 RJ45 (1GbE)
|
| グラフィックス |
ASPEED AST2500:
1 DB15 (VGA)
Intel Integrated Processor Graphics:
1 HDMI
|
| 映像出力 |
1 DB15 (VGA), 1 HDMI
|
| USB 3.0 ポート |
4 Type-A (USB3.2 Gen1)
|
| Lan ポート |
2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
|
| シリアル ポート |
1 DB9 (COM)
|
| UID Button/UID LED |
1 button w/ LED
|
| USB 3.2 (Gen1) Header |
1 (19-pin, 2 USB3.2 Gen1)
|
| USB 2.0 Header |
1 (9-pin, 2 USB2.0)
|
| Power Connector |
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
|
