| Form Factor |
E-ATX |
| Dimensions |
13" x 12" (330.2cm x 304.8cm) |
| CPU |
Intel Xeon W-3400 series and Xeon W-2400 series processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP |
| Cores / Cache |
Up to 56 cores |
| Memory Capacity |
16 DIMM slots
4TB 3DS ECC Registered RDIMM, DDR5-4800MHz |
| Memory Type |
4800/4400MHz ECC DDR5 RDIMM (3DS) 4TB |
| DIMM Sizes |
8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Chipset |
Intel® W790 |
| SATA |
Intel® W790 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio |
ALC 888S HD Audio |
| Network Controllers |
Single LAN with Marvell AQC113C LAN controller, 10GbE
- Single LAN with Intel® Ethernet i210-AT, 1GbE, share with IPMI
|
| LAN |
1 RJ45 1 Gigabit Ethernet LAN port
- 1 RJ45 10 Gigabit Ethernet LAN port
|
| USB |
4 USB 2 port(s) (2 via header; 2 rear Type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header)
4 USB 3.2 Gen2x1 port(s) (4 rear Type A)
2 USB 3.2 Gen1 port(s) (2 via header) |
| Video Output |
1 VGA port for IPMI only |
| Serial Port / Header |
1 COM Port(s) (1 rear) |
| TPM |
1 TPM Header |
| PCI-E |
6 PCIe 5.0 x16 |
| M.2 |
M.2 Interface: 4 PCIe 5.0 x4
- Form Factor: 2280/22110
- Key: M-Key (w/o heat sink)
|
| Parts List |

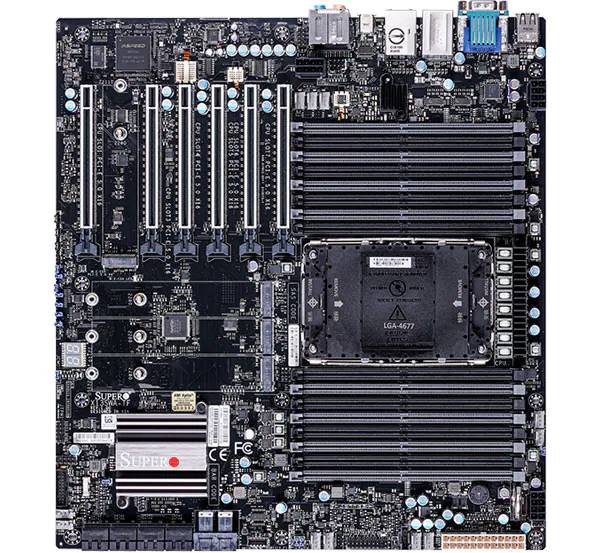

1 X13SWA-TF Motherboard
1 CPU-GPU power connector adapter
1 IO Shield
1 EIA Carrier for Intel Xeon W-3400 series (112L) processors
1 EIA Carrier for Intel Xeon W-2400 series (64L) processors |
